Manways Hatch Selection

You can search or products using the criteria on the left hand side. Please choose your options based upon the shape, size and pressure capabilities. Dimensions are selected according to the length of the longer side of the hatch (where applicable).

P06-B6-image

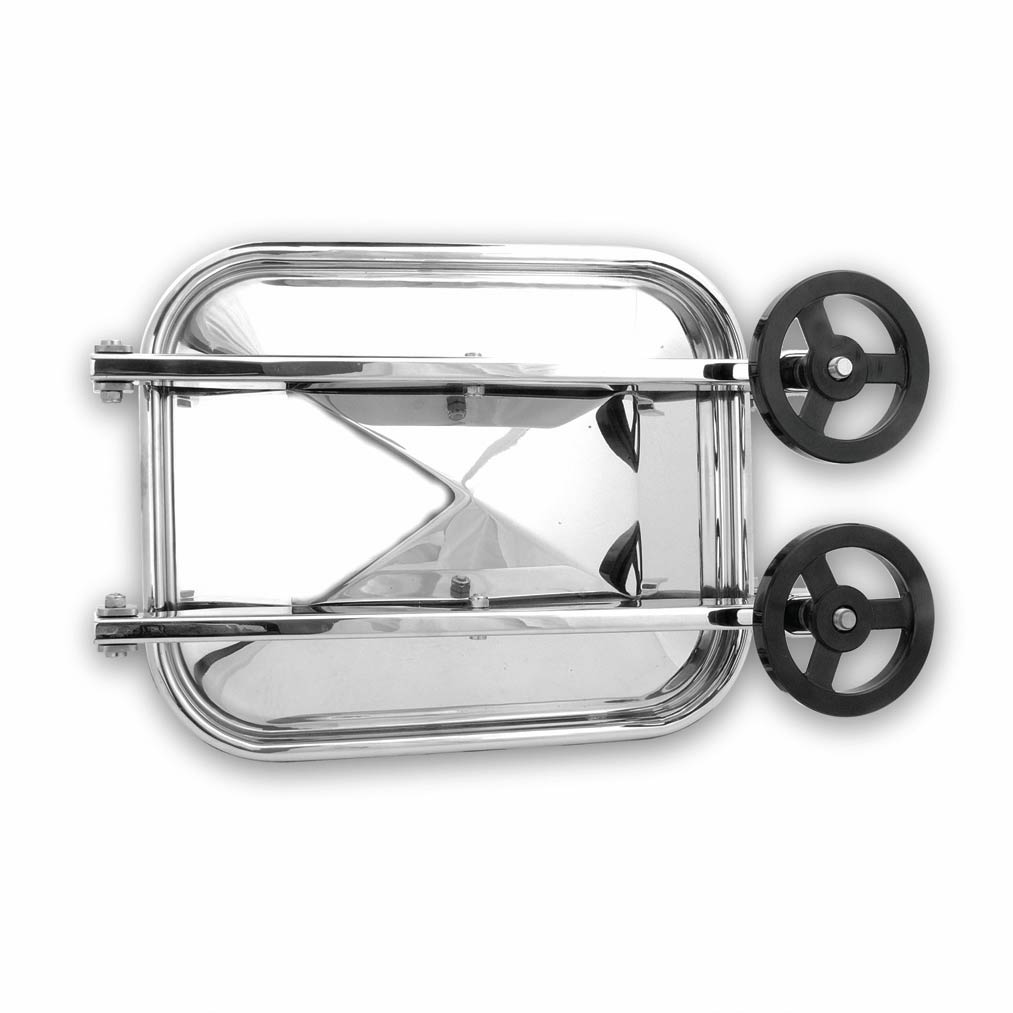

P06-B6

  • Overview
  • Specs
  • Get In Touch
  • Downloads

CODE: P06-B6
SHAPE: Rectangular
PRESSURABLE: Yes

Size: 530 x 410mm
Door Thickness (mm): 2.5mm
Lid Thickness (mm): N/A
Frame Thickness: 12mm
Frame Height: 60mm
Maximum Working Pressure (Bar): 1.1
Weight (Kg): 22Kg
No Of Clamps: N/A
CODAP 2000: N/A
ASME: N/A
TUV: N/A
Vacuum Pressure (bar): Full

More Information On This Product

    Send us a brief message if you need more information or want us to call you back.

    Name (required):

    Email (required):

    Company (required):

    Phone:

    Click the box if you'd like us to call you back:

    Product I'm interested in:

    Message

    Datasheet: HpE-Manways-P06-B6.docx-2.pdf
    CAD Drawing:
