CODE: P22-669
SHAPE: Round
PRESSURABLE: Yes

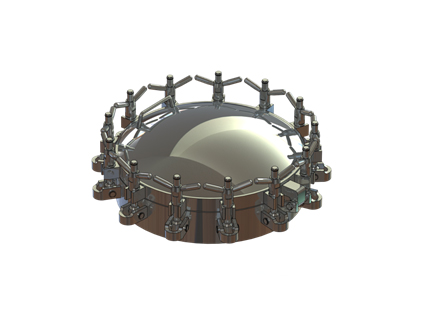

Round External Pressure Doors, PED Approval. Material 316L, Finish: EPDM as standard, various alternatives available. Full Vaccuum. Pressure rating: Maximum allowed working pressure at 150C. These doors are supplied to CODAP 2000 and are complete with PED compliant certification of material and manufacture calculation. Extras available are spring assisted opening, SYJA system , construction to ASME or TUV standards.

Size: 600mm
Door Thickness (mm): N/A
Lid Thickness (mm): N/A
Frame Thickness: N/A
Frame Height: 100mm
Maximum Working Pressure (Bar): N/A
Weight (Kg): 58Kg
No Of Clamps: 14
CODAP 2000: 7
ASME: N/A
TUV: N/A
Vacuum Pressure (bar): N/A
