CODE: P32-805
SHAPE: Round
PRESSURABLE: No

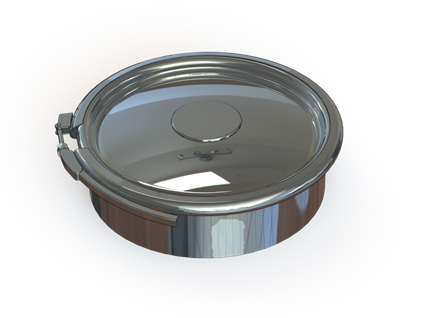

Round External Door, Rim Clamp and Loose Lid. Material 316L, Electropolish Finish, Seal: EPDM as standard. Seal Options: Nitrile, Neoprene, Silicon, Natural Rubber, PRFE Braided.

Size: 600mm
Door Thickness (mm): 2mm
Lid Thickness (mm): N/A
Frame Thickness: 2mm
Frame Height: 80mm
Maximum Working Pressure (Bar): 0.6
Weight (Kg): N/A
No Of Clamps: N/A
CODAP 2000: N/A
ASME: N/A
TUV: N/A
Vacuum Pressure (bar): N/A
