CODE: P22-266
SHAPE: Round
PRESSURABLE: Yes

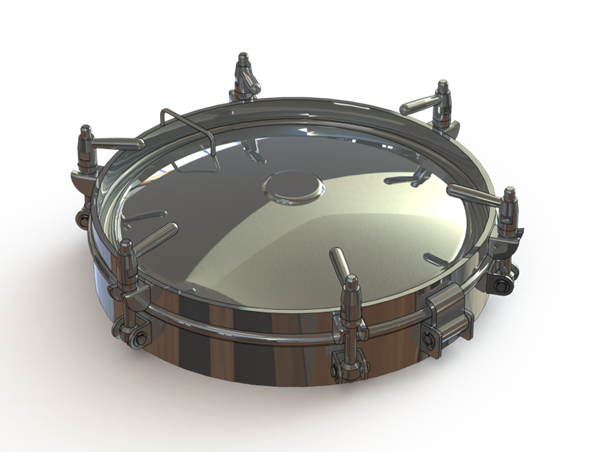

Round External Door, Hinged & Hand Fastened. Material 316L, Electropolish Finish. Seal EPDM as standard. Seal options: Nitrile, Neoprene, Silicon, Natural Rubber

Size: 604mm
Door Thickness (mm): 2mm
Lid Thickness (mm): N/A
Frame Thickness: 8mm
Frame Height: 50mm
Maximum Working Pressure (Bar): 0.9
Weight (Kg): N/A
No Of Clamps: 6
CODAP 2000: N/A
ASME: N/A
TUV: N/A
Vacuum Pressure (bar): -0.5
